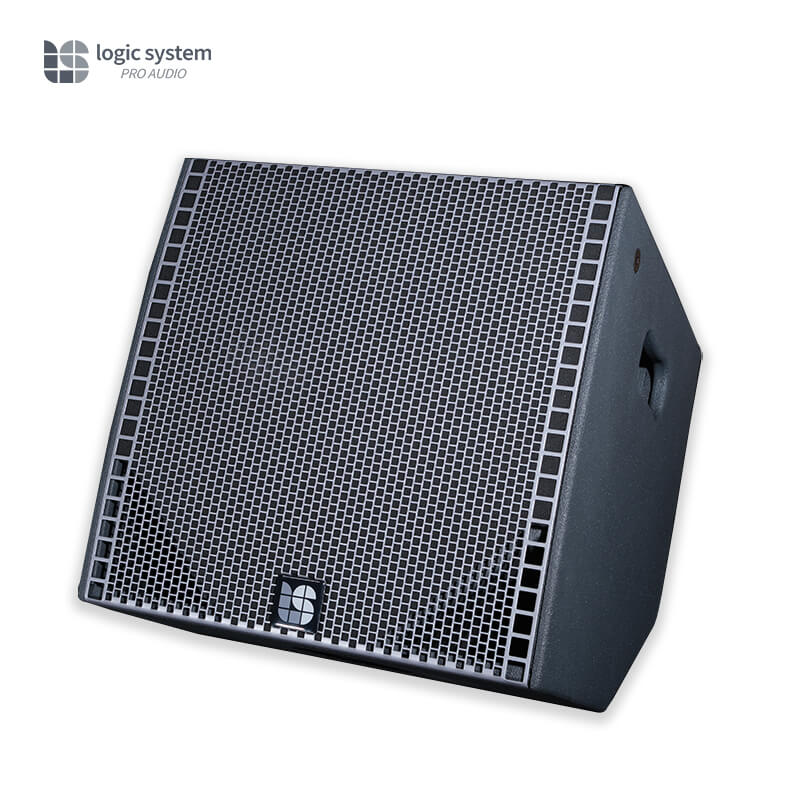

Designed and manufactured in the UK, the AC12 is a high output point source coaxial loudspeaker, suitable for Party KTV rooms and nightclub/entertainment market, where high SPL and vocal projection is required. Moving beyond the conventional black loudspeaker enclosure, the AC12 features contemporary industrial design, to be seen as well as heard. The AC12 features a high-performance Italian-made 12" ferrite driver with 3” voice coil and demodulation ring, plus a 1.4" compression driver with extended HF response. This enables the AC12 to deliver very high output levels, vocal projection and reliability, whilst maintaining a clear, low-distortion tonal balance. The coaxial driver design maintains the 80° x 80° pattern control down to below the crossover point. Five M10 inserts for eyebolts provide ample means of installing the AC12 in a venue. A robust die-cast pole mount is also provided, along with pocket handles on each side. Construction is no-compromise, using a combination of 18 and 15mm Baltic birch ply cabinet, coated in a tough dark grey Polyurea (PU) material. The cloth-backed silver coloured steel grille is zinc plated and covered in an exterior-grade powder coat, providing superior corrosion resistance. For ease of installation, the logo badge is user rotatable, without requiring tools. A high-quality, hand-built passive crossover and 8 ohm nominal impedance allows two AC12's to be driven by one channel of the LS8Q (or LS12Q) four channel amplifiers. Up to eight AC15's can be driven by one LS series amplifier, which also comes pre-loaded with EQ presets and limiter settings for the A Series products. For additional low frequency output, the AC12 can be partnered with the AS18 or AS218 direct-radiating subwoofers. It can also be used to compliment its big brother, the AC15, in large Party KTV rooms, or entertainment venues.

System Type：

Coaxial

Loading：

2 Front Ports

Cabinet：

Baltic Birch ply

Shape：

Multi-angle

System Specification：

Power Handling: continuous/RMS：

350W

Power handling: peak, 6dB crest factor：

1400W

Sensitivity (2.83V/1m) 4PI full space：

97dB

Impedance：

8 ohms

LF：

12", 300mm die-cast chassis/basket

Voice Coil：

3", 75mm

Magnet type：

Ferrite

Driver features：

Waterproof cone, front side

HF：

1.4", 35mmm exit compression driver

Voice Coil：

3", 75mm

Diaphragm：

Titanium

Magnet：

Shared with LF driveres

Crossover：

Passive

Crossover Frequency：

1.3kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

80° x 80°, conical

Max SPL (calculated), continuous：

122.5dB

Max SPL (calculated), peak (6dB crest factor)：

128.5dB

Frequency Response (-3dB)：

65Hz-18.5kHz

At -10dB：

-10dB @ 45Hz

Dimensions: Product：

Width (mm)：

404

Height (mm)：

394

Depth (mm)：

371

Weight (kg)：

20.15

Dimensions: In Carton：

Width (mm)：

425

Height (mm)：

452

Depth (mm)：

425

Weight (kg)：

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

5xM10 inserts

Pole mount：

Die-cast, for 35mm diameter pole

Connectors：

2x Neutrik® NL4

Input：

1+,1- Link Thru 2+,2-

Link Out：

1+,1-, 2+, 2-

Grille & colour：

Zintec steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Cabinet Coating：

Polyurea, RAL9011

产品概述

产品参数

下载说明

AC12在英国设计和制造，是一款高输出点源同轴扬声器，适用于需要高声压级和声音投影的派对KTV房间和夜总会/娱乐市场。AC12超越了传统的黑色扬声器外壳，采用了现代工业设计，既可以看到也可以听到。 AC12配备了一个高性能的意大利制造的12英寸铁氧体驱动器，带有3英寸音圈和解调环，以及一个具有扩展高频响应的1.4英寸压缩驱动器。这使得AC12能够提供非常高的输出电平、声音投影和可靠性，同时保持清晰、低失真的音调平衡。同轴驱动器设计将80°x 80°的图案控制保持在交叉点以下。五个M10吊环螺栓插入件为在场地安装AC12提供了足够的方法。还提供了一个坚固的压铸杆安装架，以及两侧的口袋手柄。结构毫不妥协，使用18和15mm波罗的海桦木层橱柜，涂有坚硬的深灰色聚脲（PU）材料。布背银色钢格栅镀锌，并覆盖有外部级粉末涂层，具有优异的耐腐蚀性。为了便于安装，徽标徽章是用户可旋转的，不需要工具。高质量、手工制造的无源分频器和8欧姆标称阻抗允许两个AC12由LS8Q（或LS12Q）四通道放大器的一个通道驱动。一个LS系列放大器最多可以驱动八个AC15，该放大器还预装了A系列产品的EQ预设和限制器设置。为了获得额外的低频输出，AC12可以与AS18或AS218直接辐射低音炮配合使用。它也可以在大型派对KTV室或娱乐场所用来赞美它的大哥AC15。

System Type：

Coaxial

Loading：

2 Front Ports

Cabinet：

Baltic Birch ply

Shape：

Multi-angle

System Specification：

Power Handling: continuous/RMS：

350W

Power handling: peak, 6dB crest factor：

1400W

Sensitivity (2.83V/1m) 4PI full space：

97dB

Impedance：

8 ohms

LF：

12", 300mm die-cast chassis/basket

Voice Coil：

3", 75mm

Magnet type：

Ferrite

Driver features：

Waterproof cone, front side

HF：

1.4", 35mmm exit compression driver

Voice Coil：

3", 75mm

Diaphragm：

Titanium

Magnet：

Shared with LF driveres

Crossover：

Passive

Crossover Frequency：

1.3kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

80° x 80°, conical

Max SPL (calculated), continuous：

122.5dB

Max SPL (calculated), peak (6dB crest factor)：

128.5dB

Frequency Response (-3dB)：

65Hz-18.5kHz

At -10dB：

-10dB @ 45Hz

Dimensions: Product：

Width (mm)：

404

Height (mm)：

394

Depth (mm)：

371

Weight (kg)：

20.15

Dimensions: In Carton：

Width (mm)：

425

Height (mm)：

452

Depth (mm)：

425

Weight (kg)：

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

5xM10 inserts

Pole mount：

Die-cast, for 35mm diameter pole

Connectors：

2x Neutrik® NL4

Input：

1+,1- Link Thru 2+,2-

Link Out：

1+,1-, 2+, 2-

Grille & colour：

Zintec steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Cabinet Coating：

Polyurea, RAL9011
