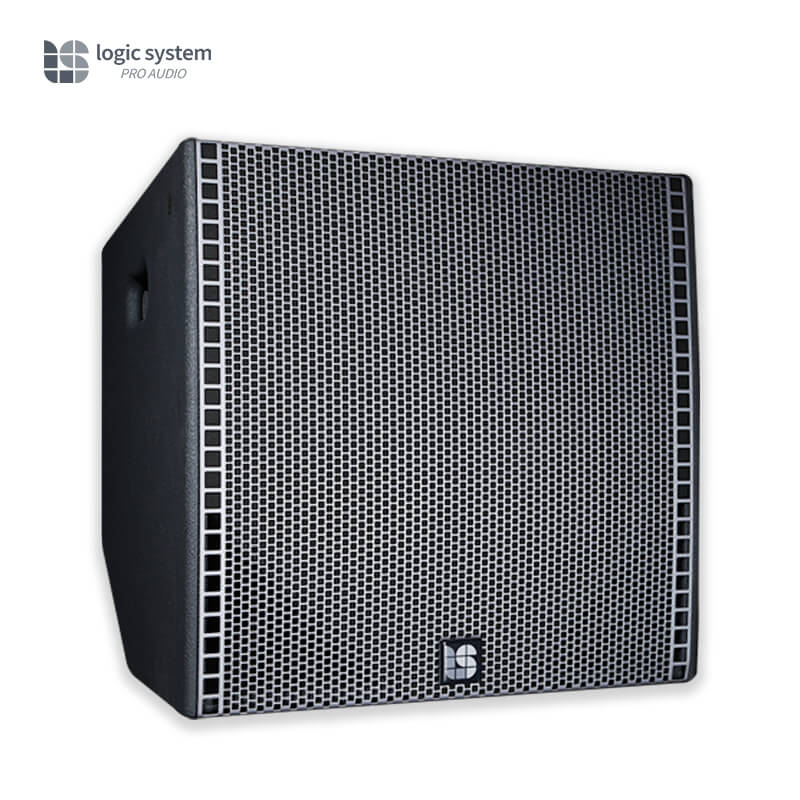

Designed and manufactured in the UK, the AC15 is a very high output point source coaxial loudspeaker, suitable for large Party KTV rooms and nightclub/entertainment market, where high SPL and vocal projection is required. Moving beyond the conventional black loudspeaker enclosure, the AC15 features contemporary industrial design, to be seen as well as heard. The AC15 features a high performance, Italian-made 15" neodymium driver with 3” voice coil and demodulation ring, plus a 1.4" compression driver with extended HF response. This enables the AC15 to deliver very high output levels, vocal projection and reliability, whilst maintaining a clear, low-distortion tonal balance. The coaxial driver design maintains the 80° x 80° pattern control down to below the crossover point. Five M10 inserts for eyebolts provide ample means of installing the AC15 in a venue. A robust die-cast pole mount is also provided, along with pocket handles on each side. Construction is no-compromise, using an 18mm Baltic birch ply cabinet, with a tough, dark grey Polyurea (PU) coating. The cloth-backed silver coloured steel grille is zinc plated and covered in an exterior-grade powder coat, providing superior corrosion resistance. For ease of installation, the logo badge is user rotatable, without requiring tools. A high-quality, hand-built passive crossover and 8 ohm nominal impedance allows two AC15's to be driven by one channel of the LS8Q or LS12Q four channel amplifiers. Up to eight AC15's can be driven by one LS series amplifier, which also comes pre-loaded with EQ presets and limiter settings for the A Series products. For additional low frequency output, the AC15 can be partnered with the AS218 direct-radiating subwoofer.

System Type：

Coaxial

Loading：

Front Ported

Cabinet：

Baltic Birch ply

Shape：

Multi-angle

System Specification：

Power Handling: continuous/RMS：

400W

Power handling: peak, 6dB crest factor：

1600W

Sensitivity (2.83V/1m) 4PI full space：

99dB

Impedance：

8 ohms

LF：

15", 380mm die-cast chassis/baskett

Voice Coil：

Magnet type：

Neodymium

Driver features：

Waterproof cone, front side

HF：

1.4", 35mmm exit compression driver

Voice Coil：

3", 75mm

Diaphragm：

Titanium

Magnet：

Shared with LF driveres

Crossover：

Passive

Crossover Frequency：

1.2kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

80° x 80°, conical

Max SPL (calculated), continuous：

125dB

Max SPL (calculated), peak (6dB crest factor)：

131dB

Frequency Response (-3dB)：

57Hz-18.5kHz

At -10dB：

-10dB @ 43Hz

Dimensions: Product：

Width (mm)：

496

Height (mm)：

486

Depth (mm)：

441

Weight (kg)：

24.6

Dimensions: In Carton：

Width (mm)：

520

Height (mm)：

545

Depth (mm)：

475

Weight (kg)：

26.6

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

5xM10 inserts

Pole mount：

Die-cast, for 35mm diameter pole

Connectors：

2x Neutrik® NL4

Input：

1+,1- Link Thru 2+,2-

Link Out：

1+,1-, 2+, 2-

Grille & colour：

Zintec Steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Cabinet Coating：

Polyurea, RAL9011
