AS218
直射式
大功率

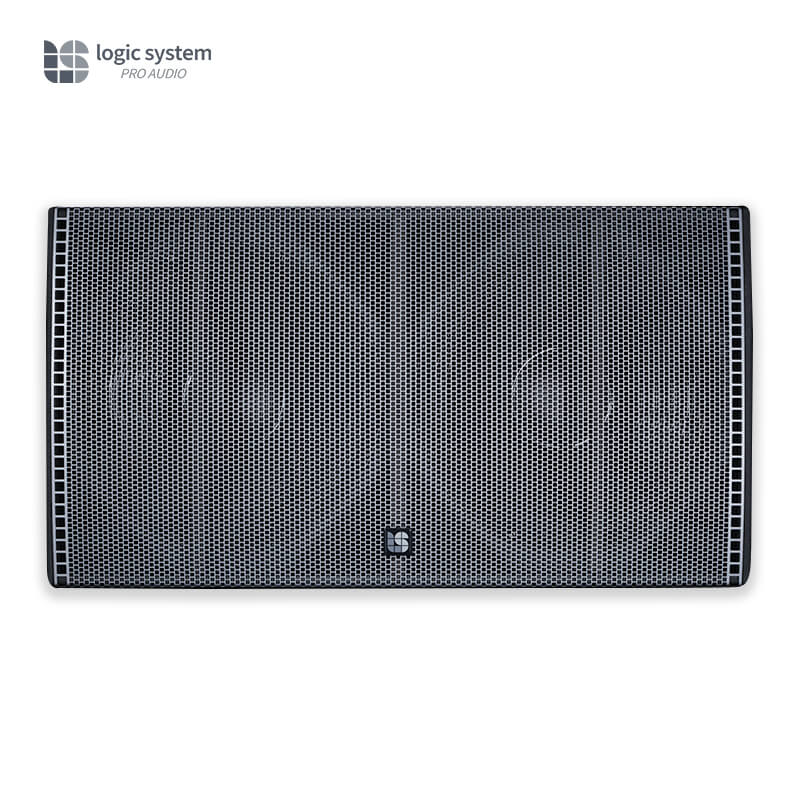

Designed and manufactured in the UK, the AS218 is a very high output direct-radiating subwoofer, suitable for the nightclub/entertainment market and large Party KTV rooms, where high SPL is required. Moving beyond the conventional black loudspeaker enclosure, the AS218 features contemporary industrial design, to be seen as well as heard.
Technical Data(Part of it)
(1) Voice Coil::4"/100mm
(2) Driver features:Vented magnet, long excursion
(3) Power Handling: continuous/RMS:2400W
(4) Power handling: peak, 6dB crest factor:9600W
(5) Sensitivity (2.83V/1m) 2PI/Half Space:105dB
Touring
KTV
Nightclub
Party K
AS218
直射式
大功率
AS218在英国设计和制造,是一款非常高输出的直接辐射低音炮,适用于夜总会/娱乐市场和需要高SPL的大型派对KTV房间。超越了传统的黑色扬声器外壳,AS218采用了现代工业设计,既可以看到也可以听到。
产品数据
(1) Voice Coil::4"/100mm
(2) Driver features:Vented magnet, long excursion
(3) Power Handling: continuous/RMS:2400W
(4) Power handling: peak, 6dB crest factor:9600W
(5) Sensitivity (2.83V/1m) 2PI/Half Space:105dB
Touring
KTV
Nightclub
Party K
Overview
Technical Data
Downloads
Designed and manufactured in the UK, the AS218 is a very high output direct-radiating subwoofer, suitable for the nightclub/entertainment market and large Party KTV rooms, where high SPL is required. Moving beyond the conventional black loudspeaker enclosure, the AS218 features contemporary industrial design, to be seen as well as heard. The AS218 features two high power handling 18" Italian-made drivers with 4” long-excursion voice coils, demodulation rings and vented ferrite motors. Large ports provide low-turbulence airflow, when reproducing signals at the lower end of the operating band. These features enable the AS218 to deliver very high output levels and reliability, whilst maintaining a clear, low-distortion low frequency sound quality. The enclosure is made from18mm Baltic birch ply, with a tough, dark grey Polyurea (PU) coating. The silver-coloured steel grille is zinc plated and covered in an exterior-grade powder coat, providing superior corrosion resistance. Inserts are provided on the rear, for castors. A large slot handle on each side of the cabinet is included for ease of installation. Up to four AS218's can be driven by one LS12Q, or LS8Q amplifier, which also come pre-loaded with EQ presets and limiter settings for the A Series products. The AS218 direct-radiating subwoofer is commonly partnered with the AT15 two-way or AC15 coaxial full range loudspeakers.
产品概述
产品参数
下载说明
AS218在英国设计和制造,是一款非常高输出的直接辐射低音炮,适用于夜总会/娱乐市场和需要高SPL的大型派对KTV房间。超越了传统的黑色扬声器外壳,AS218采用了现代工业设计,既可以看到也可以听到。 AS218配备了两个高功率处理的18英寸意大利制造的驱动器,带有4英寸长偏移音圈、解调环和通风铁氧体电机。在工作频带的低端再现信号时,大端口提供低湍流气流。这些功能使AS218能够提供非常高的输出水平和可靠性,同时保持清晰、低失真的低频音质。 外壳由18毫米波罗的海桦木层制成,涂有坚硬的深灰色聚脲(PU)涂层。银色钢格栅镀锌,并覆盖有外部级粉末涂层,具有优异的耐腐蚀性。后部为脚轮提供了插入件。机柜两侧都有一个大槽手柄,便于安装。 一个LS12Q或LS8Q放大器最多可以驱动四个AS218,这些放大器还预装了A系列产品的EQ预设和限制器设置。 AS218直辐射低音炮通常与AT15双向或AC15同轴全频扬声器配合使用。
