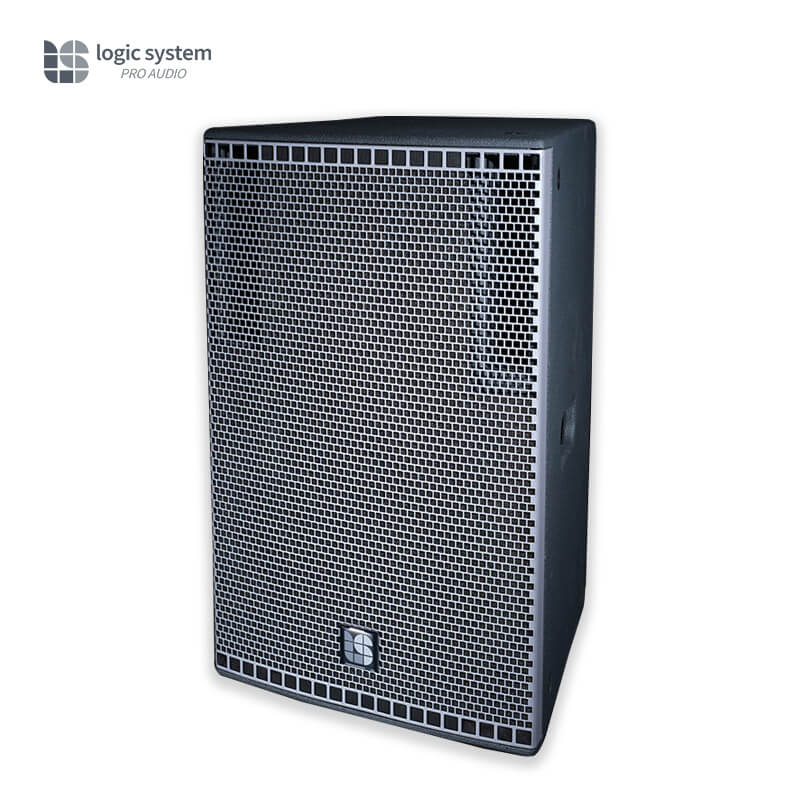

Designed and manufactured in the UK, the AT12 is a very high output compact point source two-way loudspeaker, suitable for the nightclub/entertainment market and Party KTV rooms, where high SPL is required. Moving beyond the conventional black loudspeaker enclosure, the AT12 features contemporary industrial design, to be seen as well as heard. Using Italian-made transducers, the AT12 features a 12" ferrite driver with 3” voice coil and demodulation ring, plus a 1"neodymium compression driver with extended HF response. This enables the AT12 to deliver high output levels and reliability, whilst maintaining a clear, low-distortion tonal balance. The elliptical HF horn maintains the 90° x 60° pattern control down to the 2.2kHz crossover point. It is user-rotatable, allowing the AT12 to be deployed in portrait or landscape orientation. Twelve M10 inserts for eyebolts provide ample means of installing the AT12 in a venue. A robust, die-cast pole mount is also provided, along with pocket handles on each side. Construction is no-compromise, using a combination of 18 and 15mm Baltic birch ply cabinet, with a tough, dark grey Polyurea (PU) coating. The cloth-backed, silver coloured steel grille is zinc plated and covered in an exterior-grade powder coat, providing superior corrosion resistance. For ease of installation, the logo badge is user-rotatable, without requiring tools. A high-quality, hand-built passive crossover and 8 ohm nominal impedance allow two AT12's to be driven by one channel of the LS8Q (or LS12Q) four channel amplifiers. Up to eight AT12's can be driven by one LS series amplifier, which also comes pre-loaded with EQ presets and limiter settings for the A Series products. For additional low frequency output, the AT12 can be partnered with the AS218 or AS18 direct-radiating subwoofers. It can also be used to compliment its big brother, the AT15, in large entertainment venues or Party KTV rooms.

System Type：

2 way

Loading：

2 Front Ports

Cabinet：

Baltic Birch Ply

Shape：

Trapezoidal

System Specification：

Power Handling: continuous/RMS：

400W

Power handling: peak, 6dB crest factor：

1600W

Sensitivity (2.83V/1m) 2PI/Half Space：

98dB

Impedance：

8 ohms

LF：

12", 300mm die-cast chassis/basket

Voice Coil diameter：

3", 75mm

Magnet type：

Ferrite

Driver features：

Waterproof cone, front side

HF：

1", 25mm exit compression driver

Voice Coil diameter：

1.5", 38mm

Diaphragm：

Annular HT Polymer

Magnet：

Neodymiume

Crossover：

Passive

Crossover Frequency：

2.2kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

90° x 60°, rotatable HF horn

Max SPL (calculated), continuous：

124dB

Max SPL (calculated), peak (6dB crest factor)：

130dB

Frequency Response (-3dB)：

69Hz -20kHz

At -10dB：

46Hz

Dimensions: Product：

Width (mm)：

349

Height (mm)：

564

Depth (mm)：

351

Weight (kg)：

21.65

Dimensions: In Carton：

Width (mm)：

385

Height (mm)：

610

Depth (mm)：

385

Weight (kg)：

23.25

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

12xM10 inserts

Pole mount：

Die-cast, for 35mm diameter pole

Connectors：

1x NL4 input

Wiring：

1+/1- LF, 2+/2- HF

Grille & colour：

Zintec Steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Paint：

Warnex graphite grey

产品概述

产品参数

下载说明

AT12在英国设计和制造，是一款非常高输出的紧凑型点源双向扬声器，适用于夜总会/娱乐市场和需要高SPL的派对KTV房间。AT12超越了传统的黑色扬声器外壳，采用了现代工业设计，既可以看到也可以听到。 AT12采用意大利制造的传感器，配备了一个12英寸的铁氧体驱动器，带有3英寸的音圈和解调环，以及一个1英寸的钕压缩驱动器，具有扩展的高频响应。这使得AT12能够提供高输出电平和可靠性，同时保持清晰、低失真的音调平衡。椭圆形高频喇叭将90°x 60°的模式控制保持在2.2kHz的交叉点。它是用户可旋转的，允许AT12以纵向或横向部署。12个M10吊环螺栓插入件为在场地安装AT12提供了充足的手段。还提供了一个坚固的压铸杆安装架，以及两侧的口袋手柄。结构毫不妥协，使用18和15mm波罗的海桦木层橱柜，并涂有坚韧的深灰色聚脲（PU）涂层。布背银色钢格栅镀锌，并覆盖有外部级粉末涂层，具有优异的耐腐蚀性。为了便于安装，徽标徽章是用户可旋转的，不需要工具。高质量、手工制造的无源分频器和8欧姆标称阻抗允许两个AT12由LS8Q（或LS12Q）四通道放大器的一个通道驱动。一个LS系列放大器最多可以驱动八个AT12，该放大器还预装了A系列产品的EQ预设和限制器设置。为了获得额外的低频输出，AT12可以与AS218或AS18直辐射低音炮配合使用。它也可以在大型娱乐场所或派对KTV房间里用来赞美它的大哥AT15。

System Type：

2 way

Loading：

2 Front Ports

Cabinet：

Baltic Birch Ply

Shape：

Trapezoidal

System Specification：

Power Handling: continuous/RMS：

400W

Power handling: peak, 6dB crest factor：

1600W

Sensitivity (2.83V/1m) 2PI/Half Space：

98dB

Impedance：

8 ohms

LF：

12", 300mm die-cast chassis/basket

Voice Coil diameter：

3", 75mm

Magnet type：

Ferrite

Driver features：

Waterproof cone, front side

HF：

1", 25mm exit compression driver

Voice Coil diameter：

1.5", 38mm

Diaphragm：

Annular HT Polymer

Magnet：

Neodymiume

Crossover：

Passive

Crossover Frequency：

2.2kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

90° x 60°, rotatable HF horn

Max SPL (calculated), continuous：

124dB

Max SPL (calculated), peak (6dB crest factor)：

130dB

Frequency Response (-3dB)：

69Hz -20kHz

At -10dB：

46Hz

Dimensions: Product：

Width (mm)：

349

Height (mm)：

564

Depth (mm)：

351

Weight (kg)：

21.65

Dimensions: In Carton：

Width (mm)：

385

Height (mm)：

610

Depth (mm)：

385

Weight (kg)：

23.25

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

12xM10 inserts

Pole mount：

Die-cast, for 35mm diameter pole

Connectors：

1x NL4 input

Wiring：

1+/1- LF, 2+/2- HF

Grille & colour：

Zintec Steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Paint：

Warnex graphite grey
