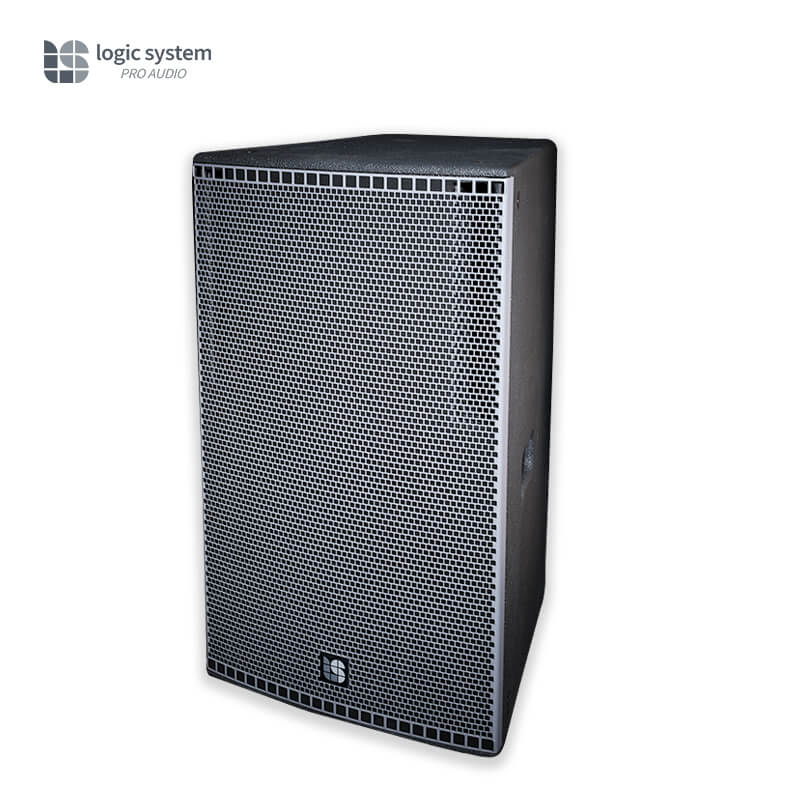

Designed and manufactured in the UK, the AT15 is a very high output point source two-way loudspeaker, suitable for the nightclub/entertainment market and large Party KTV rooms, where high SPL is required. Moving beyond the conventional black loudspeaker enclosure, the AT15 features contemporary industrial design, to be seen as well as heard. Using Italian-made transducers, the AT15 features a high performance 15" ferrite driver with 3.5” voice coil, vented gap and demodulation ring, plus a 1.4" compression driver with extended HF response. This enables the AT15 to deliver very high output levels and reliability, whilst maintaining a clear, low-distortion tonal balance. The large die-cast HF horn maintains the 80° x 60° pattern control down to below the 1.2kHz crossover point. It is user-rotatable, allowing the AT15 to be deployed in portrait or landscape orientation. Twelve M10 inserts for eyebolts provide ample means of installing the AT15 in a venue. A robust die-cast pole mount is also provided, along with pocket handles on each side. Construction is no-compromise, using an 18mm Baltic birch ply cabinet, with a tough, dark grey Polyurea (PU) coating. The cloth-backed, silver coloured steel grille is zinc plated and covered in an exterior-grade powder coat, providing superior corrosion resistance. For ease of installation, the logo badge is user-rotatable, without requiring tools. A high-quality, hand-built passive crossover and 8 ohm nominal impedance allows two AT15's to be driven by one channel of the LS8Q or LS12Q four channel amplifiers. Up to eight AT15's can be driven by one LS series amplifier, which also comes pre-loaded with EQ presets and limiter settings for the A Series products. For additional low frequency output, the AT15 can be partnered with the AS218 direct-radiating subwoofer.

System Type：

Two-way

Loading：

Front porteds

Cabinet：

18mm Baltic Birch ply

Shape：

Trapezoidal

System Specification：

Power Handling: continuous/RMS：

600W

Power handling: peak, 6dB crest factor：

2400W

Sensitivity (2.83V/1m) 2PI/Half Space：

100dB

Impedance：

8 ohms

LF：

15", 380mm die-cast chassis/basket

Voice Coil diameter：

3.5", 88mm

Magnet type：

Ferrite

Driver features：

Waterproof cone, front side

HF：

1.4", 35mm exit compression driver

Voice Coil diameter：

2.5", 63.5mm

Diaphragm：

Titanium

Magnet：

Ferrite

Crossover：

Passive

Crossover Frequency：

1.2kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

80° x 60°, rotatable die-cast horn

Max SPL (calculated), continuous：

128dB

Max SPL (calculated), peak (6dB crest factor)：

134dB

Frequency Response (-3dB)：

57Hz-20kHz

At -10dB：

-10dB @ 46Hz

Dimensions: Product：

Width (mm)：

416

Height (mm)：

712

Depth (mm)：

441

Weight (kg)：

35.95

Dimensions: In Carton：

Width (mm)：

475

Height (mm)：

760

Depth (mm)：

450

Weight (kg)：

38.4

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

12xM10 inserts

Pole mount：

Die-cast, For 35mm diameter pole

Connectors：

2x Neutrik® NL4

Input：

1+,1- Link Thru 2+,2-

Link Out：

1+,1-, 2+, 2-

Grille & colour：

Zintec Steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Paint：

Warnex graphite grey

产品概述

产品参数

下载说明

AT15在英国设计和制造，是一款非常高输出的点源双向扬声器，适用于夜总会/娱乐市场和需要高SPL的大型派对KTV房间。AT15超越了传统的黑色扬声器外壳，采用了现代工业设计，既可以看到也可以听到。 AT15采用意大利制造的传感器，具有高性能的15英寸铁氧体驱动器，带有3.5英寸音圈、通风间隙和解调环，以及具有扩展高频响应的1.4英寸压缩驱动器。这使得AT15能够提供非常高的输出电平和可靠性，同时保持清晰、低失真的音调平衡。大型压铸高频喇叭将80°x 60°的模式控制保持在1.2kHz交叉点以下。它是用户可旋转的，允许AT15以纵向或横向部署。12个M10吊环螺栓插入件为在场地安装AT15提供了充足的手段。还提供了一个坚固的压铸杆安装架，以及两侧的口袋手柄。结构毫不妥协，使用18毫米波罗的海桦木层橱柜，涂有坚硬的深灰色聚脲（PU）涂层。布背银色钢格栅镀锌，并覆盖有外部级粉末涂层，具有优异的耐腐蚀性。为了便于安装，徽标徽章是用户可旋转的，不需要工具。高质量、手工制造的无源分频器和8欧姆标称阻抗允许两个AT15由LS8Q或LS12Q四通道放大器的一个通道驱动。一个LS系列放大器最多可以驱动八个AT15，该放大器还预装了A系列产品的EQ预设和限制器设置。为了获得额外的低频输出，AT15可以与AS218直接辐射低音炮配合使用。

System Type：

Two-way

Loading：

Front porteds

Cabinet：

18mm Baltic Birch ply

Shape：

Trapezoidal

System Specification：

Power Handling: continuous/RMS：

600W

Power handling: peak, 6dB crest factor：

2400W

Sensitivity (2.83V/1m) 2PI/Half Space：

100dB

Impedance：

8 ohms

LF：

15", 380mm die-cast chassis/basket

Voice Coil diameter：

3.5", 88mm

Magnet type：

Ferrite

Driver features：

Waterproof cone, front side

HF：

1.4", 35mm exit compression driver

Voice Coil diameter：

2.5", 63.5mm

Diaphragm：

Titanium

Magnet：

Ferrite

Crossover：

Passive

Crossover Frequency：

1.2kHz

Construction：

Hand-built, using air core inductors

Acoustic Specification：

Dispersion (-6dB), horizontal x vertical：

80° x 60°, rotatable die-cast horn

Max SPL (calculated), continuous：

128dB

Max SPL (calculated), peak (6dB crest factor)：

134dB

Frequency Response (-3dB)：

57Hz-20kHz

At -10dB：

-10dB @ 46Hz

Dimensions: Product：

Width (mm)：

416

Height (mm)：

712

Depth (mm)：

441

Weight (kg)：

35.95

Dimensions: In Carton：

Width (mm)：

475

Height (mm)：

760

Depth (mm)：

450

Weight (kg)：

38.4

Cabinet fitttings：

Handles：

2 side handles

Flying brackets：

12xM10 inserts

Pole mount：

Die-cast, For 35mm diameter pole

Connectors：

2x Neutrik® NL4

Input：

1+,1- Link Thru 2+,2-

Link Out：

1+,1-, 2+, 2-

Grille & colour：

Zintec Steel, silver grey

Grille coating：

Exterior grade powder coat

Grille backing：

Acoustically transparent cloth

Paint：

Warnex graphite grey
